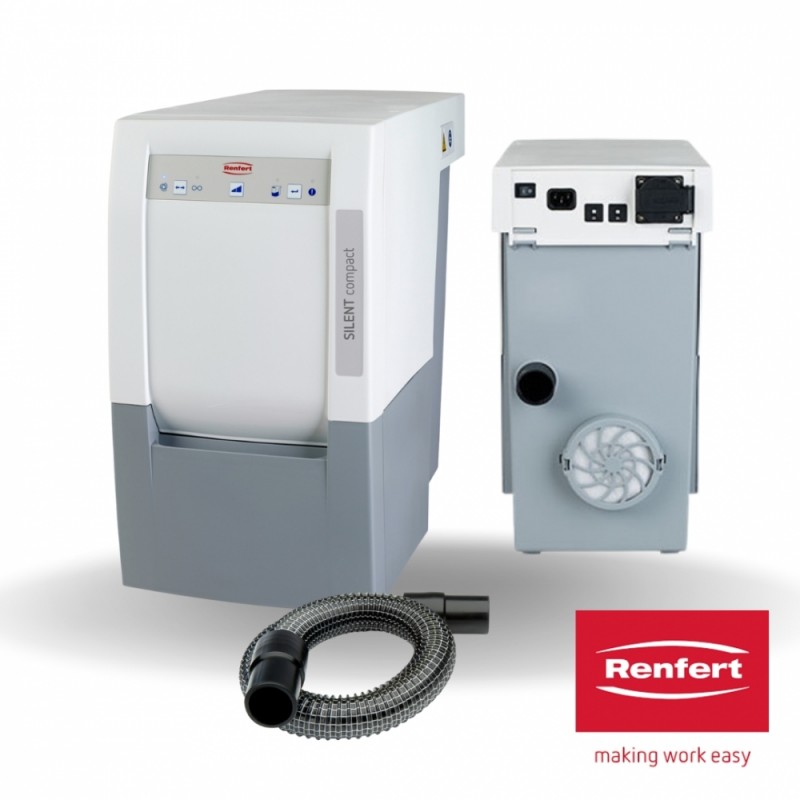

Renfert Silent COMPACT Dust Extraction Unit for Single Work Station or Machine includes 2m Hose - Bagless 29340000 - TOP SELLER
- Brand: Renfert
- Product Code: R-S-C
TOP SELLER
Renfert Silent COMPACT Dust Extraction Unit for Single Work Station or Machine includes 2m Hose - Bagless 29340000
RRP: $2529.00 + GST (2024)
Dust Extraction Unit for Single Work Station or Machine includes 2m Hose - Bagless 29340000
Function & Performance
The SILENT compact is a small, workplace extraction unit for one appliance.
Advantages
-
No dust bag change due to bagless, fine filter technology, including mechanical filter cleaning function.
-
Easy use due to the intelligent switch-on function controlled by the appliance.
-
Noise level reduced due to a fully enclosed collector motor, with a run time of > 1 000 operating hours.
Details:
-
Easily built-in due to compact construction
-
Attractive, high grade design due to the use of special plastic.
-
Low downtime as the motor can be quickly replaced by the user (takes 10 min).
-
Two suction levels with one suction level optimally suited to the relevant application.
-
Active health protection due to filter technology with a filter efficiency of 99.9%.
Scope of Delivery
-
1 x SILENT compact
-
1 x Quick Start Guide
-
1 x Quick Reference Cardt
-
1 x Power cable
-

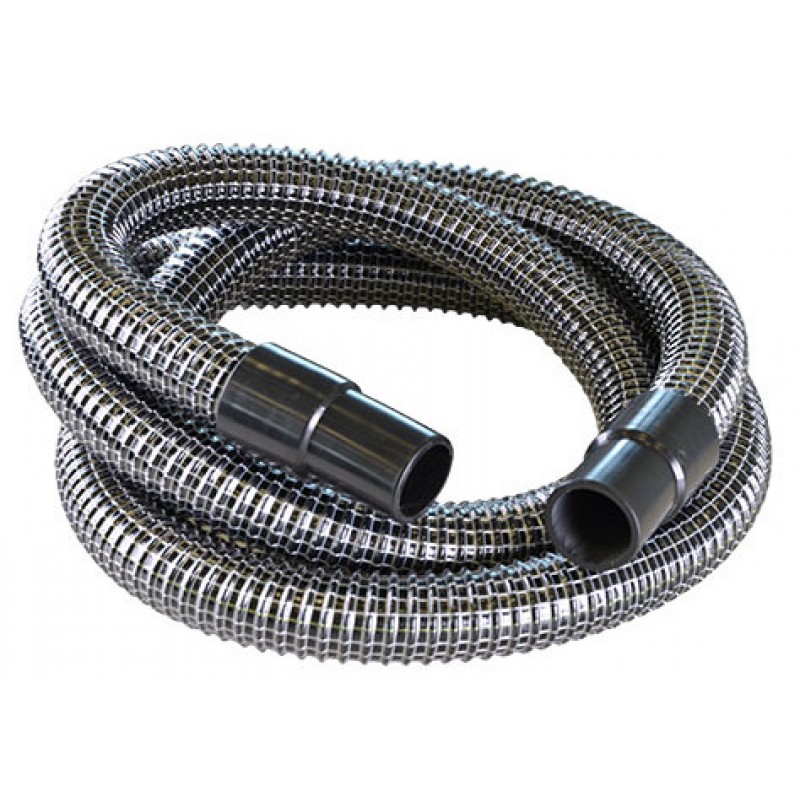

1 x Suction hose, 2m, incl. 2 end mufflers
Small compact, single workplace extraction unit for one appliance.
-
Bagless
-
Self cleaning filter startup function.
-
Noise Level 55dB(A)
-
Unit Output Power Max 2000W
-
Volume flow (max.) 2500 l/min
-
Fill level dust drawer ca. 2,6 L
-
Weight 13.2kg
-
2m Hose inc end Mufflers
-
Size 440H x 245W x 500D mm
Maintenance and Setup Videos
Technical Data
Name |
SILENT compact, 220-240 V |
---|---|
Article number |
29340000 |
Permissible mains voltage |
220–240 V |
Permissible mains frequency |
50/60 Hz |
Nominal voltage |
230 V |
Suction turbine power |
490 W (230 V) |
Volume flow (max.) |
2500 l/min (230 V) |
Max. depression |
219 hPa |
Motor technology |
Collector |
Filter technology |
Bag- free |
Filter quality |
Class M according to EN 60335-2-69 |
Max. permitted connected load of the plug-in socket |
1350 W (230 V) |
Mains input fuse |
8 A |
Number of suction hoses |
1 |
Sound pressure level (LpA) (at max. volume flow) |
55 dB(A) |
Weight (empty) |
~13,2 kg |
Dimensions (W x H x D) |
245 x 440 x 500 mm |
Ø suction fittings interior |
35 mm |
Ø suction fittings exterior |
40 mm |
Fill level dust collector |
~2,6 l |
Using with Monomer Fumes? – There is an optional External Exhaust spare part to vent fumes outside if suitable for your setup.
Optional - External Exhaust Air Route
An external exhaust air route (see accessories) allows the extracted air to leave the laboratory. The installation details are supplied with the external exhaust air route.
When the extraction unit is used in conjunction with an external ventilation system, a significant quantity of air is extracted from the room per hour. This can create negative pressure within the room which, when using an air dependent naked flame fed by gas, liquid or solid fuel, can cause poisonous gasses (e.g. carbon monoxide) to be drawn into the working area. It is therefore essential to ensure that the fresh air supply is sufficient and that the environmental air pressure is maintained, this should then be monitored by an authorized specialist (e.g. a certified Gas Service Engineer).
