*** SPECIAL ORDER INDENT ITEM ONLY 4 - 8 WEEKS *** CALL US TO DISCUSS
Renfert Magma Furnace (Excluding Flue) 220–240V - 23000500 - 1pc
* For Use With Catalyst Converter or add Standard Flue - Both add on items purchased seperately depending on requirements.

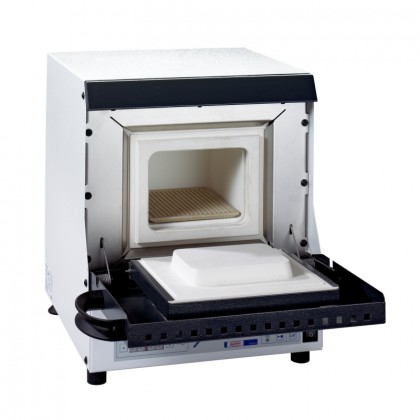

Magma is a preheating furnace with all the technical features, which fulfill all the requirements in terms of programming, handling and ergonomics.
Catalyst Converter optional attachement - Removes about 60-70% of fumes for exhuast. Still requires external ventilated installation for remaining fumes.
Preheating furnaces with Art. no. 2300.x500 have been set up for operation with a catalyst converter and are delivered without a flue. The catalyst converter (Art. no. 2300.0001) must first be installed before the oven can be operated.
Advantages
- Four-sided heating ensures uniform heating in the entire furnace chamber.
- Quick heat rate: to 900°C (1654°F) in only 60 min.
- 99 Program storage spaces + 1 Program for speed investments.
Optional Accessories: Catalyst converter, 220-240 V - 23000001
Reduction of unpleasant odors and smoke thanks to catalytic post-combustion of furnace gases. Intelligent control via the Magma.Increase in service life thanks to automatic switch-off at 650°C (1202°F). The catalyst converter operates continuously when using the speed program.
Permissible mains voltage / frequency: 230 V, 50/60 Hz
Power consumption: 580 W
Weight: 4,8 kg (10.6 lbs)
Dimensions (WxHxD): 190 x 370 x 170 mm (7.5 x 15.6 x 6.7")
|
Name
|
Magma, 220-240 V
|
Magma for use with catalyst converter, 220–240 V
|
|
Article number
|
23000000
|
23000500
|
|
Permissible mains voltage
|
220–240 V
|
220–240 V
|
|
Permissible mains frequency
|
50/60 Hz
|
50/60 Hz
|
|
Power consumption
|
1900 W
|
1900 W
|
|
Mains input fuse
|
12 A(T)
|
12 A(T)
|
|
Temperature range
|
0–1100 °C
30–2010 °F
|
0–1100 °C
30–2010 °F
|
|
Programmable heating rate
|
0–9 °C/min
0–17 °F/min
|
0–9 °C/min
0–17 °F/min
|
|
Max. heat-up rate in 1 hour
|
900 °C
1652 °F
|
900 °C
1652 °F
|
|
Number of programmable stage programs
|
99
|
99
|
|
Number of speed programs
|
1
|
1
|
|
Volume (Muffle)
|
3,45 l
0.91 gal
|
3,45 l
0.91 gal
|
|
Type temperature sensor
|
PtRh-Pt
|
PtRh-Pt
|
|
Dimensions (W x H x D) (incl. one handle and flue)
|
430 x 500 x 440 mm
16,9 x 19,7 x 19,3"
|
430 x 500 x 440 mm
16,9 x 19,7 x 19,3"
|
|
Dimensions (W x H x D) (incl. one handle and catalyst converter)
|
430 x 610 x 550 mm
16,9 x 24,0 x 21,7"
|
430 x 610 x 550 mm
16,9 x 24,0 x 21,7"
|
|
Dimensions (W x H x D) (muffle)
|
160 x 120 x 180 mm
6,3 x 4,7 x 7,1"
|
160 x 120 x 180 mm
6,3 x 4,7 x 7,1"
|
|
Weight (incl. flue)
|
~30 kg
~66.1 lbs
|
|
|
Weight (incl. catalyst converter)
|
|
~34,8 kg
~76.7 lbs
|
