- Renfert Vario basic (Recyclable) - Base Unit ONLY without Optional additional fine blasting tanks - 29600005 - SPECIAL ORDER
Renfert Vario basic (Recyclable) - Base Unit ONLY without Optional additional fine blasting tanks - 29600005 - SPECIAL ORDER
- Brand: Renfert
- Product Code: R-VB
This item maybe a SPECIAL ORDER ITEM - Leadtime can be up to 6-8 weeks. Contact us to discuss.

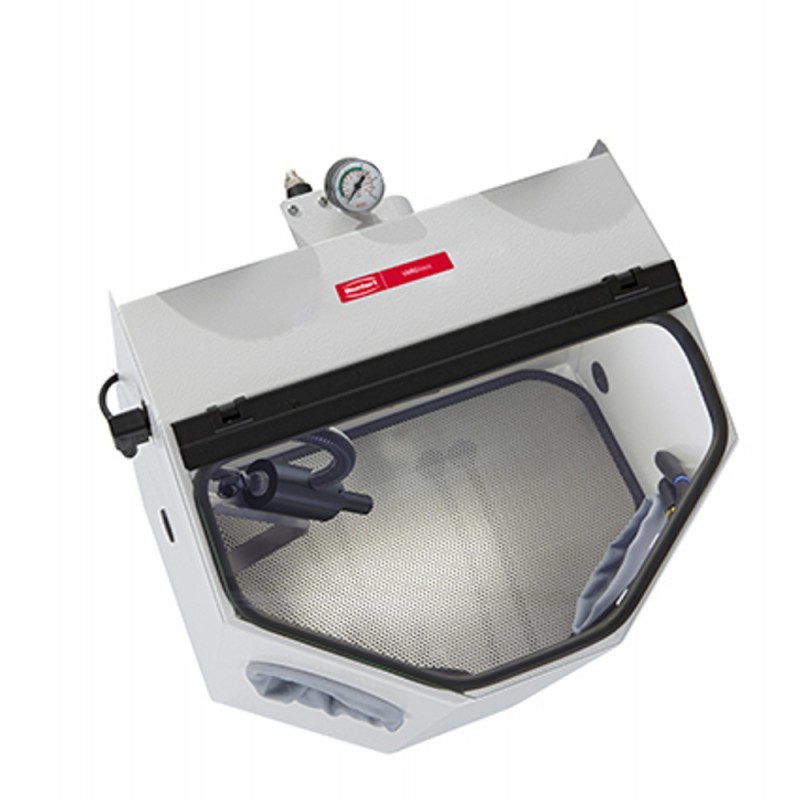

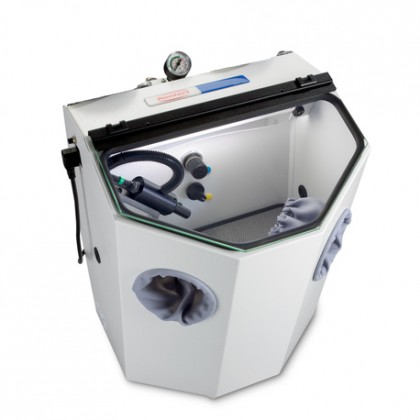

Vario Basic - Recyclable and Fine Sandblasting Unit
** IMPORTANT FOR ALL SANDBLASTING UNITS - Must only use suitable compressed air that is clean, oil free and has filtered moisture free air. **
The compact combination of recycling sandblaster and microblaster. A cost-effective, multifunctional solution for all relevant sandblasting work in the dental laboratory.
Advantages
- Can be upgraded with 1 to 4 microblasting tanks.
- 50% less abrasive consumption due to intelligent extraction system (only unusable fine dust is removed).
- PerfectView: Innovative LED Technology for best contour and detail recognition.

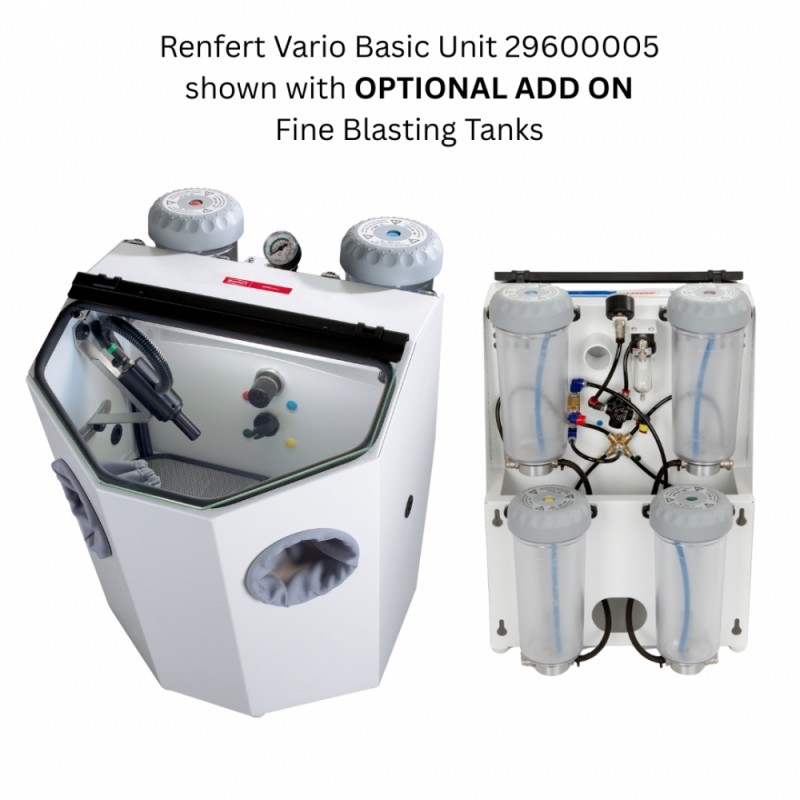

*Optional Upgrade - Can be upgraded with 1 to 4 microblasting tanks the fit on the back of the unit for manual blasting.
Dust Extraction with Vario Basic / Vario Jet Units:
The dust is sucked through the brush beneath the top cover (under the glass hinge/holder).
With the holes at the rear, the suction power is adjusted. If they are blocked more or less with tape, the suction power in the inner chamber gets higher.
But this will result in a higher abrasive consumption. With open holes, the system is designed for approx. 3000L/min suction.
Only dust/broken abrasive particles should be sucked out. Intact abrasive should fall back into the bottom of the chamber for recycling.
Name |
Vario basic, 220-240 V |
---|---|
Article number |
29600005 |
Permissible mains voltage |
220–240 V |
Permissible mains frequency |
50/60 Hz |
Working pressure |
1–6 bar |
Max. connection pressure |
8 bar |
Air consumption |
200 l/min (6 bar) |
Intensity of lighting |
4800 lux |
Lamp power |
16 W |
Dimensions (W x H x D) (0–2 tank version) |
380 x 540 x 450 mm |
Dimensions (W x H x D) (3-4 tank version) |
380 x 540 x 540 mm |
Tank capacity |
1000 ml |
Number of tanks |
0–4 |
Blasting chamber volume |
23 l |
Weight (empty without tanks) |
~14 kg |
