- Renfert VARIO JET Automatic / Manual Recycling Sandblaster 29610000 (Perfect for processing Chrome Cobalt)

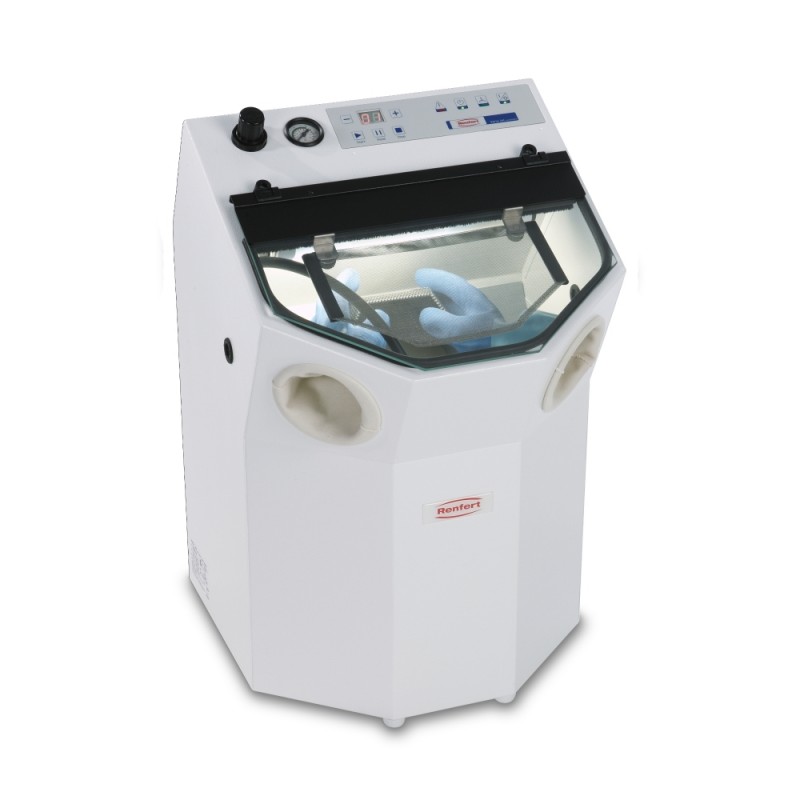

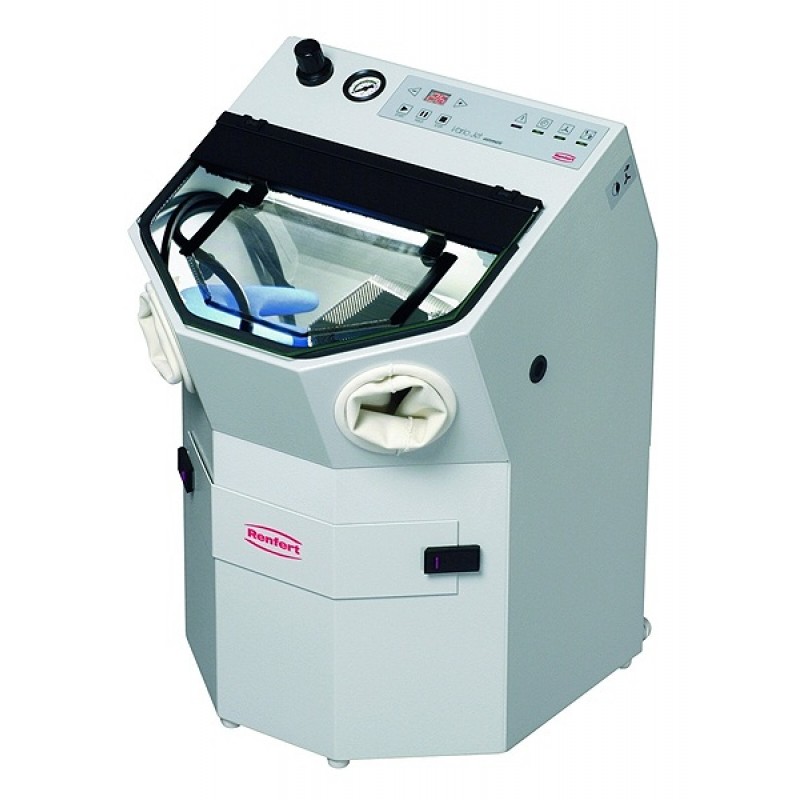

Renfert VARIO JET Automatic / Manual Recycling Sandblaster 29610000 (Perfect for processing Chrome Cobalt)
- Brand: Renfert
- Product Code: R-VJA
This item maybe a SPECIAL ORDER ITEM - Leadtime can be up to 6-8 weeks. Contact us to discuss.
Renfert VARIO JET Automatic / Manual Recycling Sandblaster 29610000 (Perfect for processing Chrome Cobalt)
** IMPORTANT FOR ALL SANDBLASTING UNITS - Must only use suitable compressed air that is clean, oil free and has filtered moisture free air. **
The Vario jet is the ideal recycling sandblaster for economic sandblasting. It can be operated in both automatic and manual modes.
Used in dental laboratories to remove investments and oxides from cast parts (primarily model castings). Perfect for processing Chrome Cobalt.
Advantages
- Exact coordination of the essential sandblasting parameters (pressure, time, grit size).
- Intelligent extraction system: only unusable fine dust is extracted.

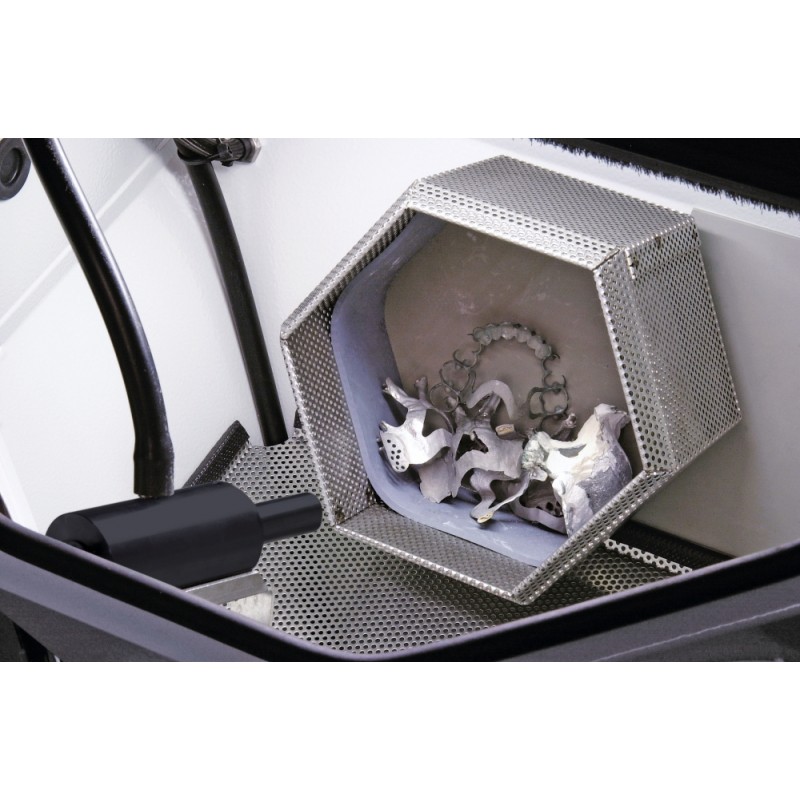

- High degree of freedom of movement due to easily removable sandblasting basket.
- Perfect for processing and finishing Chrome Cobalt
Details
- Intuitive operating logic.
- Program selection via a membrane keypad.
- Blasting pressure can be set from 1–6 bar (14.5–87 psi).
- Manometer pressure display.
- Automatic control of an external extraction with controlled shut-off delay between 5 and 30 sec.
- Inlet opening and connection possibility for a compressed-air-driven unit (microblaster, pneumatic deflasking chisel, outlet nozzle).
- Highly resistant, coated glass panel.
- Cotton-coated protective gloves.
Dust Extraction with Vario Basic / Vario Jet Units:
The dust is sucked through the brush beneath the top cover (under the glass hinge/holder).
With the holes at the front under glass pane, the suction power is adjusted. If they are blocked more or less with tape, the suction power in the inner chamber gets higher.
But this will result in a higher abrasive consumption. With open holes, the system is designed for approx. 3000L/min suction.
Only dust/broken abrasive particles should be sucked out. Intact abrasive should fall back into the bottom of the chamber for recycling.
Permissible mains voltage |
220–240 V | 100–120 V |
Permissible mains frequency |
50/60 Hz |
Power consumption |
30 W |
Max. power consumption of external dust extractor |
1200 W |
Working pressure |
1–6 bar | 14.5–87 psi |
Max. connection pressure |
10 bar | 145 psi |
Air consumption |
200 l/min (6 bar) | 7.06 cfm (87 psi) |
Dimensions (W x H x D) |
405 x 650 x 460 mm | 15.9 x 25.6 x 18.1 " |
Blasting chamber volume |
25 l | 6.6 gal |
Weight (empty) |
~26 kg | ~57.3 lbs |
Renfert VARIO JET Automatic / Manual Recycling Sandblaster 29610000 (Perfect for processing Chrome Cobalt)
- Brand: Renfert
- Product Code: R-VJA
This item maybe a SPECIAL ORDER ITEM - Leadtime can be up to 6-8 weeks. Contact us to discuss.
Renfert VARIO JET Automatic / Manual Recycling Sandblaster 29610000 (Perfect for processing Chrome Cobalt)
** IMPORTANT FOR ALL SANDBLASTING UNITS - Must only use suitable compressed air that is clean, oil free and has filtered moisture free air. **
The Vario jet is the ideal recycling sandblaster for economic sandblasting. It can be operated in both automatic and manual modes.
Used in dental laboratories to remove investments and oxides from cast parts (primarily model castings). Perfect for processing Chrome Cobalt.
Advantages
- Exact coordination of the essential sandblasting parameters (pressure, time, grit size).
- Intelligent extraction system: only unusable fine dust is extracted.
- High degree of freedom of movement due to easily removable sandblasting basket.
- Perfect for processing and finishing Chrome Cobalt
Details
- Intuitive operating logic.
- Program selection via a membrane keypad.
- Blasting pressure can be set from 1–6 bar (14.5–87 psi).
- Manometer pressure display.
- Automatic control of an external extraction with controlled shut-off delay between 5 and 30 sec.
- Inlet opening and connection possibility for a compressed-air-driven unit (microblaster, pneumatic deflasking chisel, outlet nozzle).
- Highly resistant, coated glass panel.
- Cotton-coated protective gloves.
Dust Extraction with Vario Basic / Vario Jet Units:
The dust is sucked through the brush beneath the top cover (under the glass hinge/holder).
With the holes at the front under glass pane, the suction power is adjusted. If they are blocked more or less with tape, the suction power in the inner chamber gets higher.
But this will result in a higher abrasive consumption. With open holes, the system is designed for approx. 3000L/min suction.
Only dust/broken abrasive particles should be sucked out. Intact abrasive should fall back into the bottom of the chamber for recycling.
Permissible mains voltage |
220–240 V | 100–120 V |
Permissible mains frequency |
50/60 Hz |
Power consumption |
30 W |
Max. power consumption of external dust extractor |
1200 W |
Working pressure |
1–6 bar | 14.5–87 psi |
Max. connection pressure |
10 bar | 145 psi |
Air consumption |
200 l/min (6 bar) | 7.06 cfm (87 psi) |
Dimensions (W x H x D) |
405 x 650 x 460 mm | 15.9 x 25.6 x 18.1 " |
Blasting chamber volume |
25 l | 6.6 gal |
Weight (empty) |
~26 kg | ~57.3 lbs |
