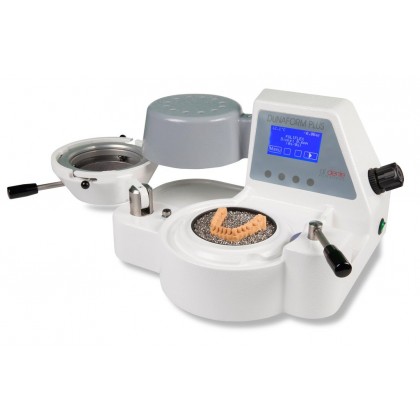

Aldente DUNAFORM PLUS Pressure Former Thermoforming Unit - V2

Digital Model - 10 Program Memory

RRP $4650.00 + GST (2025)

Before purchasing the "pressure forming" technology, please download the Product Manual and watch VIDEO showing how to use at www.durodent.com.au (Search: Dunaform). Have a read of the product manual and watch the video to understand how this powerful pressure former operates and techniques so you are aware of how it works and the results.

The unit has a very strong heating element that is different to handle compared to a slow heating ceramic element on a ‘vacuum former’ style unit. Therefore material heating timing is important and might take a little trial and error to perfect if you are not used to it.

OPERATING MANUAL DOWNLOAD

ALDENTE INTRO VIDEO - Germany Only

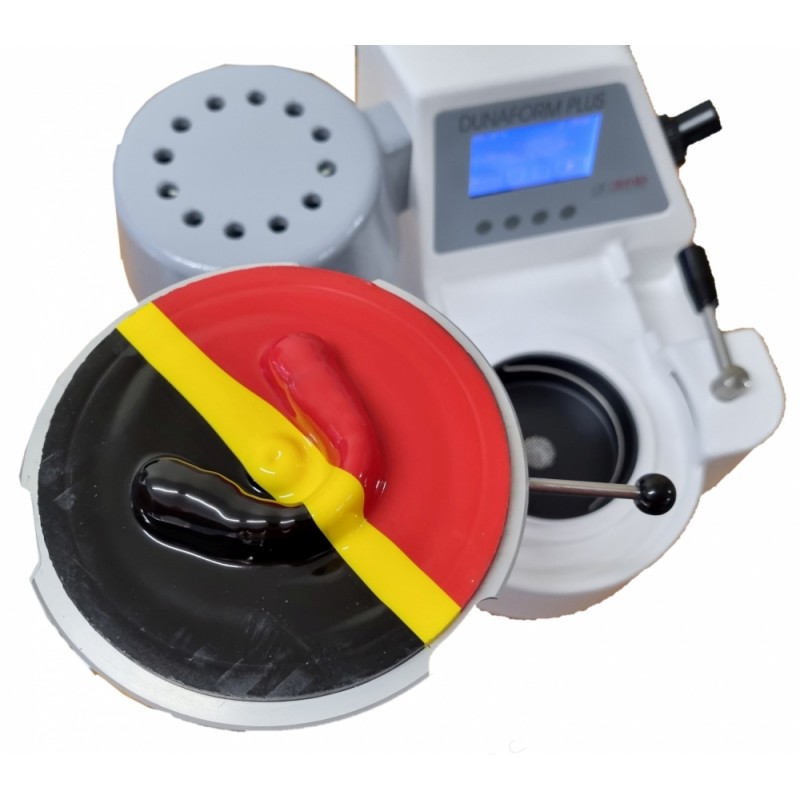

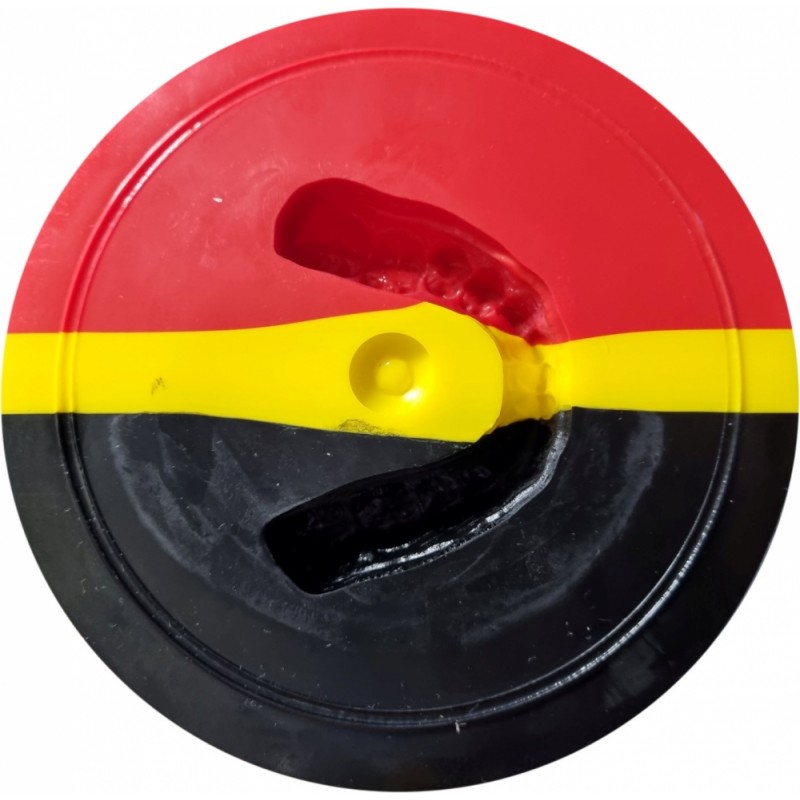

DURODENT DEMO VIDEO - How to preheat and form 4mm Multi Colours Mouthguard

EXTRA TIPS AND TRICKS INFORMATION PAGE - PROGRAMS AND MATERIAL

Made In Germany

A thermoforming device for all applications of the dental thermoforming technique in the laboratory and in the practice. Our pressure moulding device DUNAFORM is a device of the new generation.

A pressure moulding device for all applications of the dental thermoforming technique in the laboratory and in the practice.

• Please be aware: Pressure Former technology pushs down the material over the model from top filling a chamber with high pressure compressed air to give superior adaption results. (Different to a Vacuum Former which is cheaper, that draws down the material over the model with a vacuum pump from the bottom)
• Suits both 120mm + 125mm round thermoforming materials
• Programmable Heating / Cooling Times with 10 Memory Slots
  • Working out correct heating times, is a manual trial and error. Depending on material brand, colour, thickness etc
• CPU Version 2 (Since 29.10.20) - Now with improved function. Heating cycle can be broken early and it will sill now allow user to complete the full process.
• Material thicknesses from 0,1 to 5,0 mm
• Working Pressure 0.5 – 6 bar

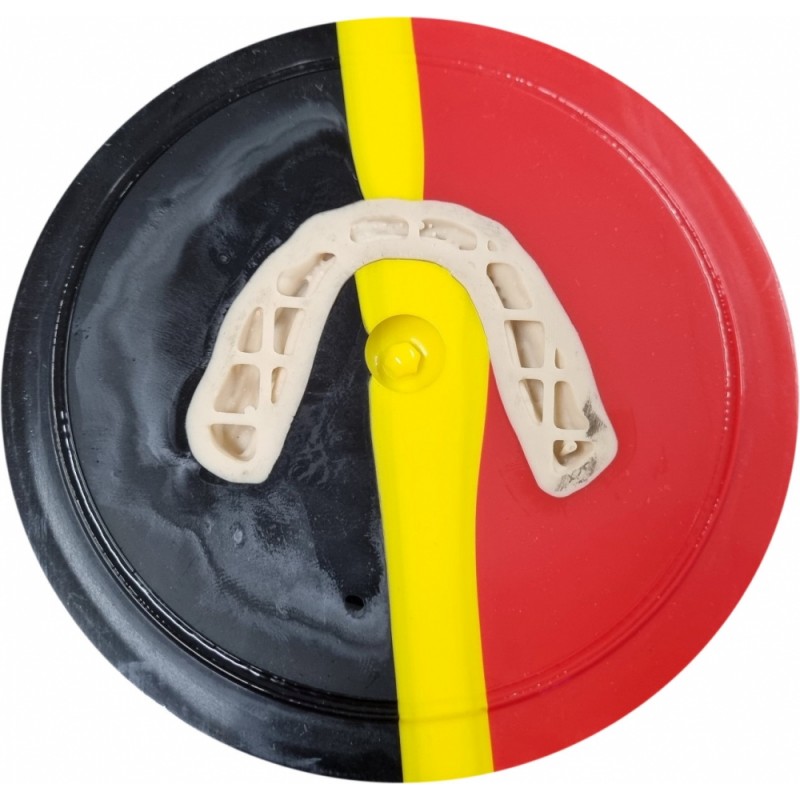

• Suitable for all applications including mouthguards, retainers, laminate, splints, and bleaching trays.

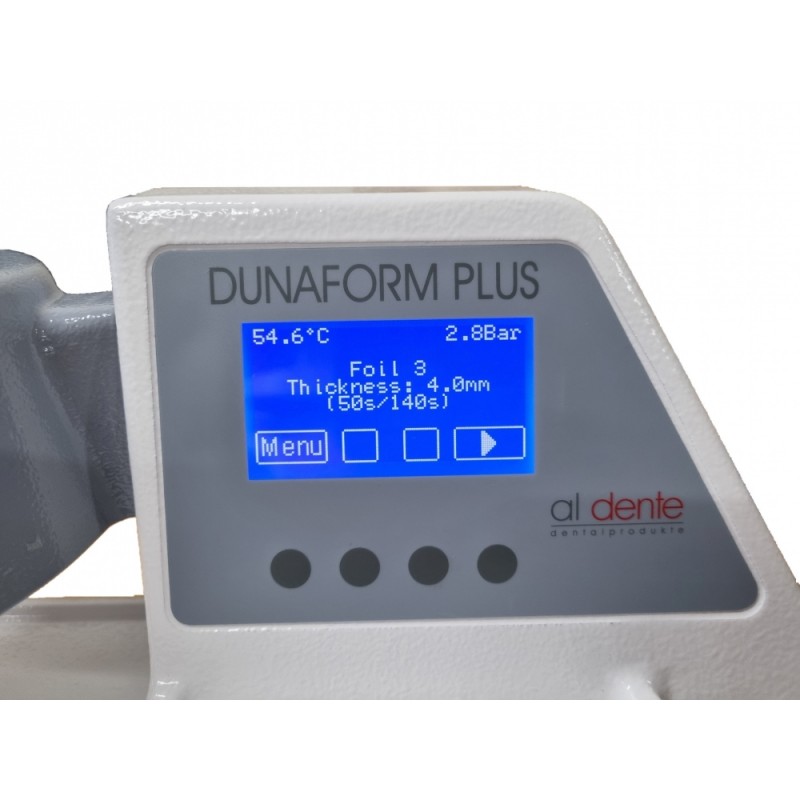

• Operating parameters are programmed with operating keys. All important information can be viewed on display
• Time information is given visually and acoustically

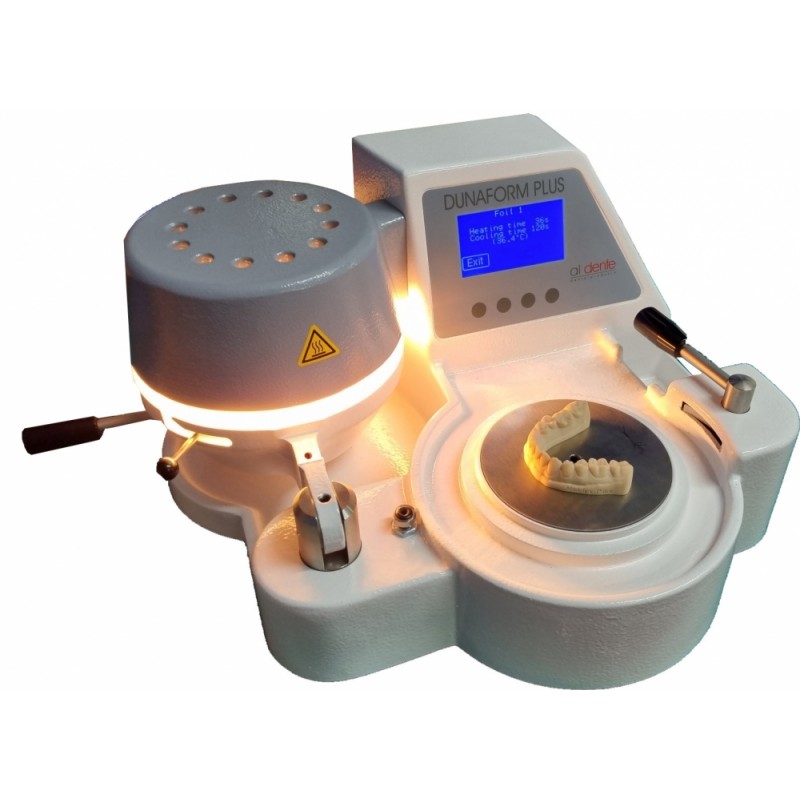

• No pre-heating of the element necessary, the infrared heating element will get to full temperature quickly.
• Heating of the thermoforming sheet takes place on the side which is facing the model
• Very long heater life approx. 4000 - 5000 hours
• Compressed air connection required to suit 6mm OD hose to your labs internal air line / air fitting style

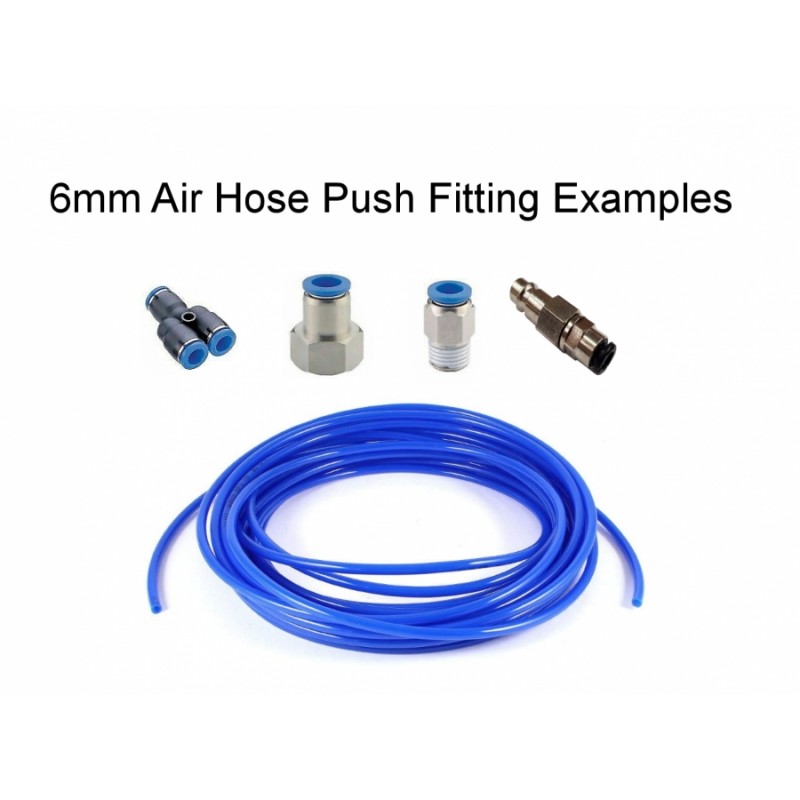

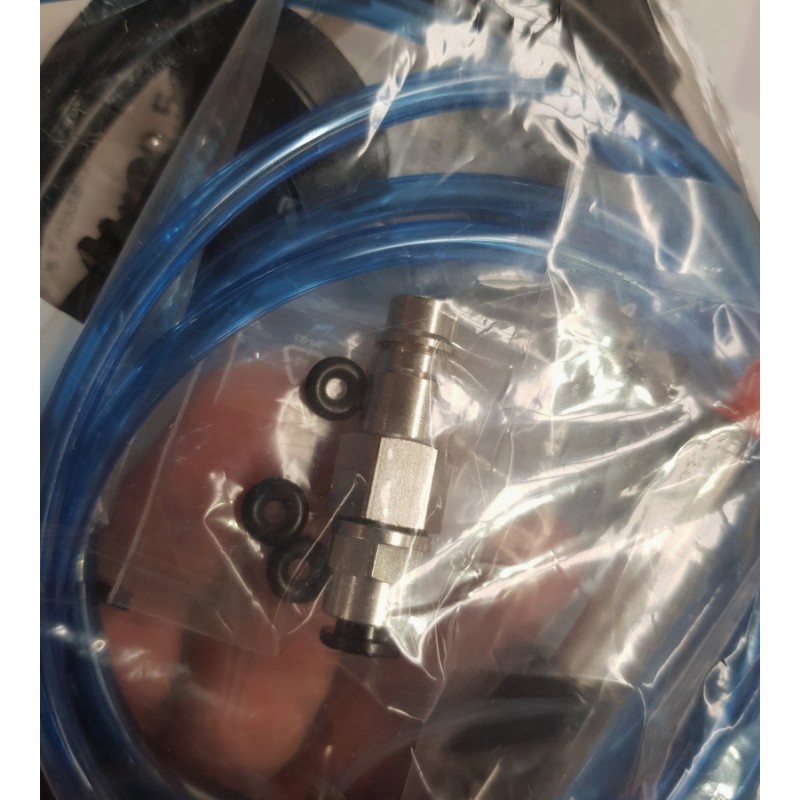

  • Supplied with 6mm air hose plus same Fittings that might suit your air line styles.
  • 6mm Air Hose quick connection on the back of machine
  • ** IMPORTANT - Must only use suitable compressed air that is clean, oil free and has filtered moisture free air.
• Made In Germany
• Weight Approx – 9kg

12 Months Warranty

Approx Size: 250H x 400W x 350D
